• Sizes: DN80-DN800
• Heads up to: 220 m
• Flows up to: 11.400 m3/h
• Liquid temperature: -20 ÷ 120°C
• Nominal pressure: 12 to 31 bar
• Flange rating: Standard PN16, PN25 and PN40 design

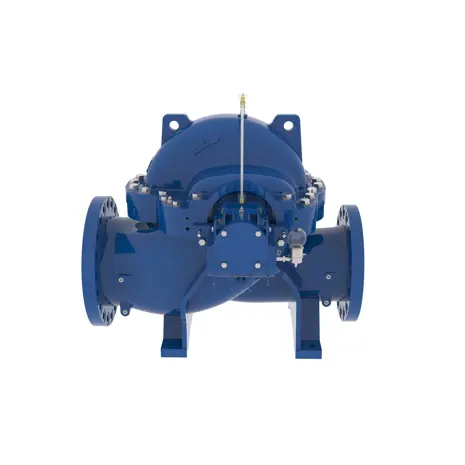

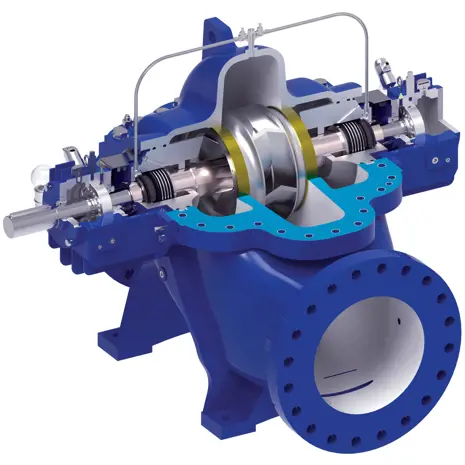

Designed and manufactured by the global leader in pumping technology, the Lowara e-XC single stage, double suction centrifugal pump provides a more powerful and efficient solution for a wide range of industrial applications including oil & gas, power generation, general industry, and mining.
It is a configurable single-stage horizontal split-case pump with extensive flow and head coverage and a common in-line configuration for easier installation of new and retrofit pumping systems. You have a choice of construction materials to choose from, ensuring this pumping solution not only meets your demands for performance but also offers best value.
With a top end flow rate of up to 11.400 m3/h and maximum head up to 220 m, the e-XC can easily handle medium and large capacity systems matching the needs of industrial and municipal applications.
e-XC is available in a full range of standard materials, including duplex and super duplex, alongside engineered-to-order options – making it suitable for a wide range of applications in public utilities and industrial markets.
e-XC can run for 100.000 hours (L10) when working in its preferred operating range (POR) before the bearings need to be changed, thanks to its robust design and shorter shaft. That’s up to 3 times longer than any other pump ranges.

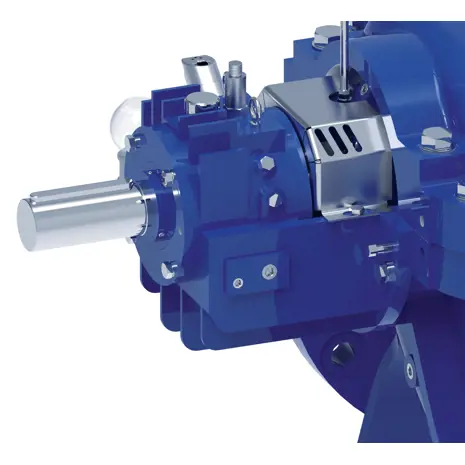

Optional temperature and vibration sensors on the bearing bracket make real time measurement available to help predict maintenance needs. optimyzeTM is available as an accessory, preventing pump breakdown and avoiding expensive downtime, thanks to predictive maintenance advice.
With 142 different size options, and hydraulics optimised by computational fluid dynamics calculations, the e-XC range allows you to select the most efficient pump for any duty point up to more than 11.000 m3/h – leading to significant savings both in new systems and when replacing existing pumps.
e-MP high-pressure multi-stage pumps are used in mining, oil and gas, power plants, manufacturing industries, etc., cooling and heating systems, spray systems, washing and cleaning systems, fire protection systems, filtration systems, water delivery systems in industrial processes, Pressurization system, water treatment system.
Learn More
e-MP high-pressure multi-stage pumps are used in mining, oil and gas, power plants, manufacturing industries, etc., cooling and heating systems, spray systems, washing and cleaning systems, fire protection systems, filtration systems, water delivery systems in industrial processes, Pressurization system, water treatment system.
Learn More
Sand gravel pumps are designed to handle very large particles for gravel and dredging operations. Gravel pump is single-stage single-suction horizontal centrifugal pump, connected by belt. It is light, good anti-cavitation performance and easy to install.It is applied to conveying of sands, mud and slurry with bigger solid particles.
Learn More
Pumps are designed to produce high heads per stage at high pressures. Commonly used for long distance transport lines, the AJH lines can often satisfy application duties with a single pump where others require multiple pumps.The range is capable of handling medium size particles and pumping at heads in excess of 90 meters per stage.
Learn More
Heavy-duty slurry pumps are designed for a wide range of erosive and corrosive applications.They are generally used for slurries containing high concentrations of erosive solids or where anextremely heavy duty pump is required. Pumps are available both metal and rubber lined corrosion and abrasion resistant materials.
Learn More

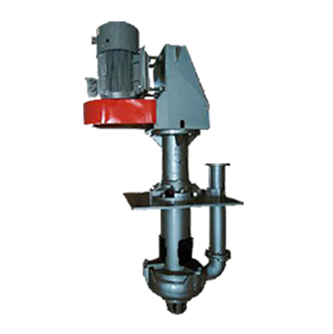

Vertical cantilevered sump slurry pump's design that features hard alloy wear parts or full elastomer protection on all submerged components. This allows this pump to be used in highly corrosive applications.
Learn More

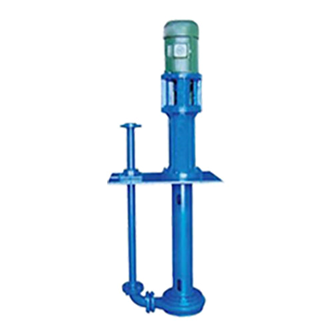

Sump slurry pump is vertical single-stage single suction cantilevering centrifugal pump structure. The impeller is semi-open.There are mixing blades in the extension of suction part.
Learn More
