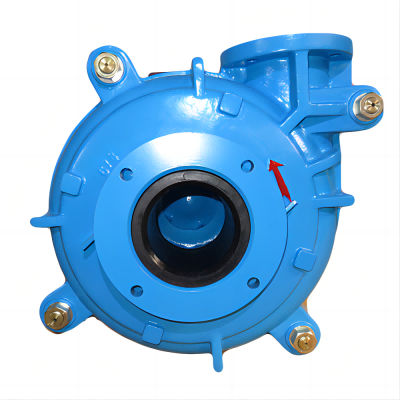

HORIZONTAL HEAVY-DUTY SLURRY PUMPS

HORIZONTAL HEAVY-DUTY SLURRY PUMPS

Heavy-duty slurry pumps are designed for a wide range of erosive and corrosive applications.They are generally used for slurries containing high concentrations of erosive solids or where anextremely heavy duty pump is required. Pumps are available both metal and rubber lined corrosion and abrasion resistant materials.

  • Payment :

    TT
  • Product Origin :

    China
  • Color :

    Blue
  • Shipping Port :

    Tianjin
  • Lead Time :

    20 days
SPECIFICATIONS
HORIZONTAL HEAVY-DUTY SLURRY PUMPS Heavy-duty slurry pumps are designed for a wide range of erosive and corrosive applications.They are generally used for slurries containing high concentrations of erosive solids or where anextremely heavy duty pump is required. Pumps are available both metal and rubber lined corrosion and abrasion resistant materials.
WORKING RANGE Discharge Diameters - 1″ to 18″ (25mm to 450mm)
Flow Rate to 5,040m3/h
Head Range to 68 m
FEATURES
IMPELLERS Various of metal and elastomer interchangeable. Front and rear shrouds have pump out vanes that reduce recirculation and seal contamination.
LINERS Various of metal and elastomer interchangeable. Easily replaceable liners are bolted, not glued to the casing for positive maintenance.
THROATBUSH Various of metal and elastomer interchangeable. Wear is reduced and maintenance simplified by the use of tapered.
EXPELLER SEAL Be available with low flow water flush or zero flow (grease lubricated) options to provide exceptional sealing where water introduction to the seal is intolerable or limited.
STUFFING BOX Gland sealing with packing and lantern ring.
BEARING ASSEMBLY Bearing assembly is adoptable of cylindrical structure, it is easy to adjust the space between impeller and front liner. Can be removed completely when repaired. Bearing assembly use grease lubrication.
CASING Casing halves of cast or ductile iron provides high operating pressure capabilities.
BASE A single piece base cradles the cartridge type bearing and shaft assembly. An external impeller adjustment mechanism is provided below the bearing housing for easy adjustment of impeller clearance.
APPLICATIONS Heavy Duty Slurry Pumps using for handing strong abrasive, high density slurries, high head slurries in the mining, metallurgical, coal, power, building material and other industrial units.





Performance Data
Pump Material Allowable Max. Clear Water Performance Impeller
Model Liner Impeller Power Capacity Q Head Speed Max Impeller Diameter
P(Kw) H(m) N(rpm) Efficiency D(mm)
        η(%)
1.5/1 AJ M M 15 12.6--28.8 3.5-8 6--68 1200--3800 40 152
RU RU   10.8--25.5 3--7 7--52 1400--3400 35
2/1.5 AJ M M 15 32.4--72 9--20 6--58 1200--3200 45 184
RU RU   25.2--54 45122 5.5--41 1000--2600 50 178
3/2 AJ M M 30 39.6--86.4 45254 12--64 1300--2700 55 214
RU RU   36--75.6 45220 13--39 1300--2100 55 213
4/3 AJ M M 30 86.4--198 24-55 9--52 1000--2200 71 245
RU RU   79.2--180 22-50 5--34.5 800--1800 59
6/4 AJ M M 60 162--360 45-100 12--56 800--1550 65 365
RU RU   144--324 40-90 12--45 800--1350 65
8/6 AJ M M 300 360--828 100-230 10--61 500--1140 72 510
RU RU   324--720 90-200 7--49 400--1000 65
10/8 AJ M M 560 612--1368 170-380 11--61 400--850 71 686
RU RU   540--1188 150-330 12--50 400--750 75
12/10 AJ M M 560 936--1980 260-550 7--68 300--800 82 762
RU RU   720--1920 200-450 7--45 300--650 80
14/12 AJ M M 560 1260--2772 350-770 13--63 300--600 77 965
RU RU   1152--2520 320-700 13--44 300--500 79
16/14 AJ M M 1200 1368--3060 380-850 11--63 250--550 79 1067
20/18 AJ M M 1200 2520--5400 700-1500 13--57 200--400 85 1370
